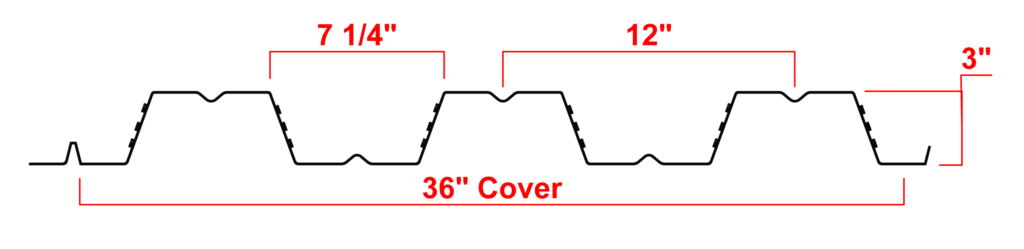

3″ Composite Steel Deck
3″ composite metal deck requires more concrete but spans greater distances than shallower composite metal decking. It is recommended to pour a minimum of 2″ of concrete over the ribs of the deck for a total slab thickness of 5″.
Description

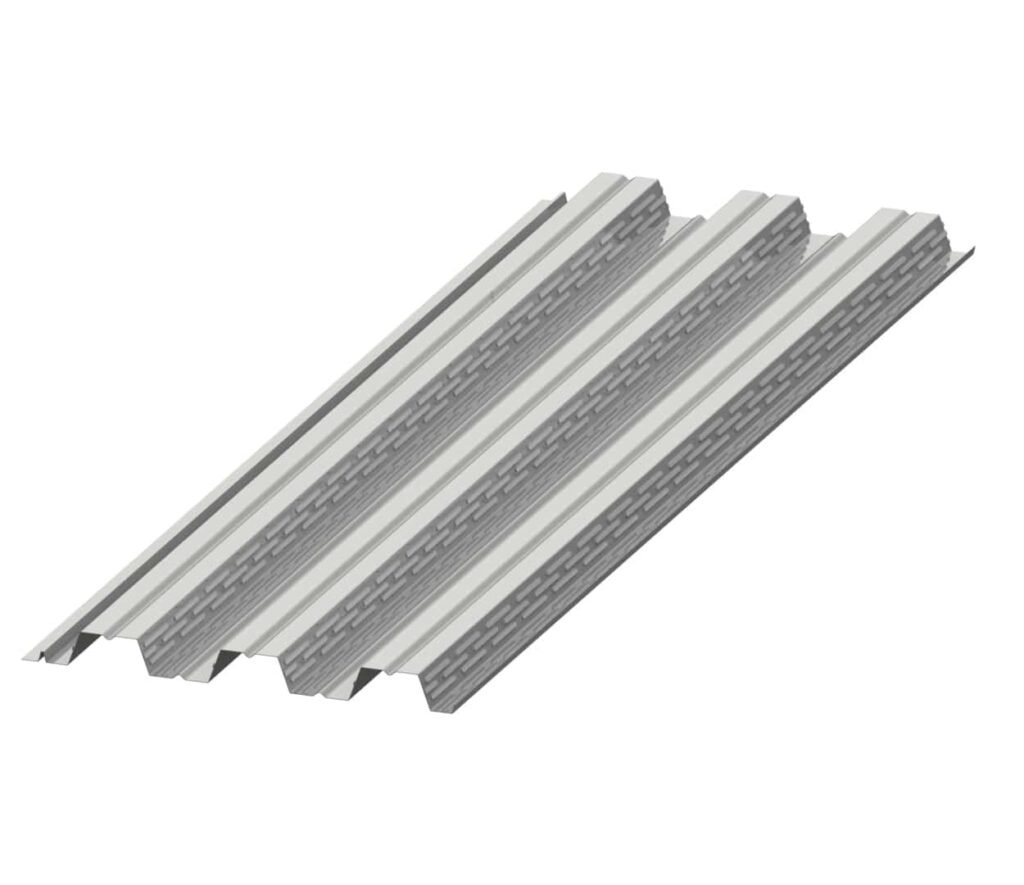

3” composite floor deck panels are primarily used for pouring concrete slabs. Composite floor decks have embossments that grip the concrete slab and they are typically reinforced with rebar or wire mesh which creates a strong bond with the concrete floor. Composite steel deck is a permanent concrete form and provides positive reinforcement while it eliminates the time and cost of wood forming.
2.0 Composite Gauges:
2.0 Composite Finishes:
Galvanized G-60 zinc coated steel is the standard in the deck industry.
Galvanized G-90 is typically specified for exterior applications or project specific needs.
PTD or primer painted is an impermanent, provisional coating and is gray on top and bottom.
Attachment Pattern:
Your project Engineer will determine your attachment requirements for your design loads, building code and project requirements. The following standard 1.5 Composite Deck attachment pattern has been provided as a minimum recommendation for the product specified. The attachments should be made to from deck to support, deck sidelap to deck sidelap and seck to perimeter supports.
